Lightweight Flexible LED Film Screen P6 P8 P10 Indoor LED Display Screen
-
Highlight
Lightweight Flexible LED Film Screen
,Flexible LED Film Screen P6
,P10 Indoor LED Display Screen
-
NameFlexible LED Film Screen
-
Module Composition Size1000*240mm
-
Pixel Pitch6mm
-
Refresh Rate3840Hz
-
Viewing Angle≥160°
-
Weight≤ 3.5KG/m2
-
LED SpecificationSMD2121 (light Drive In One)
-
Place of OriginChina
-
Brand NameYUYI
-
CertificationCE ROHS FCC
-
Model NumberP6
-
Minimum Order Quantity1 square meter
-
PriceNegotiable
-
Packaging DetailsCarton/wooden case/flight case/customized
-
Delivery Time15-30 working days
-
Payment Terms,L/C,D/A,D/P,T/T,Western Union,MoneyGram
-
Supply Ability3000 pieces/day
Lightweight Flexible LED Film Screen P6 P8 P10 Indoor LED Display Screen
High-Performance Flexible LED Film Screen P6 P8 P10 for Versatile Applications
As a technological product, YUYI LED film screen has irreplaceable advantages:
Unique Visual Experience
Different from the traditional LED transparent screen on the market, YUYI LED film screen has more advantages.

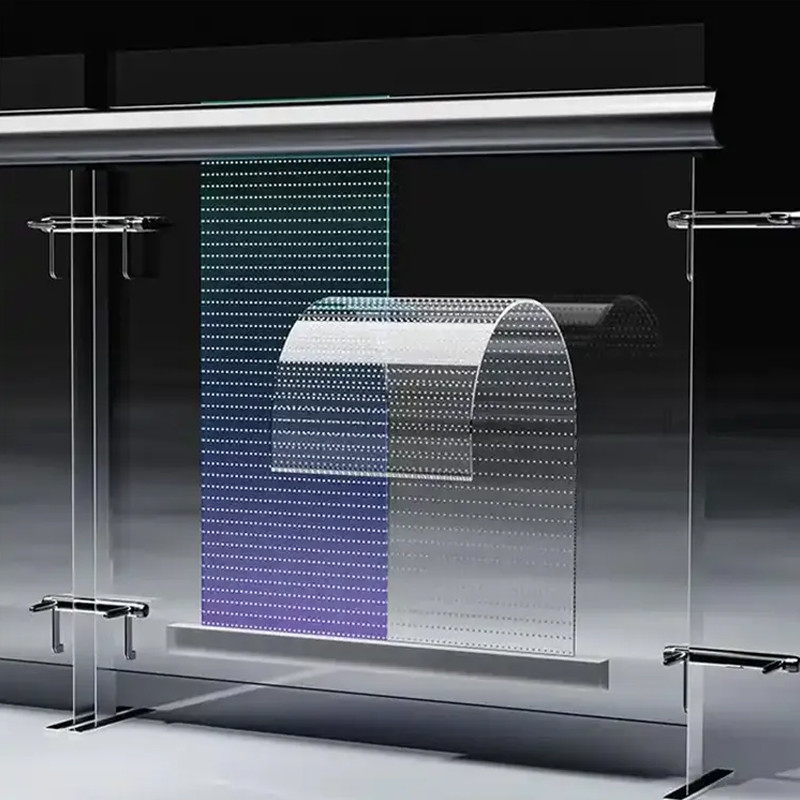

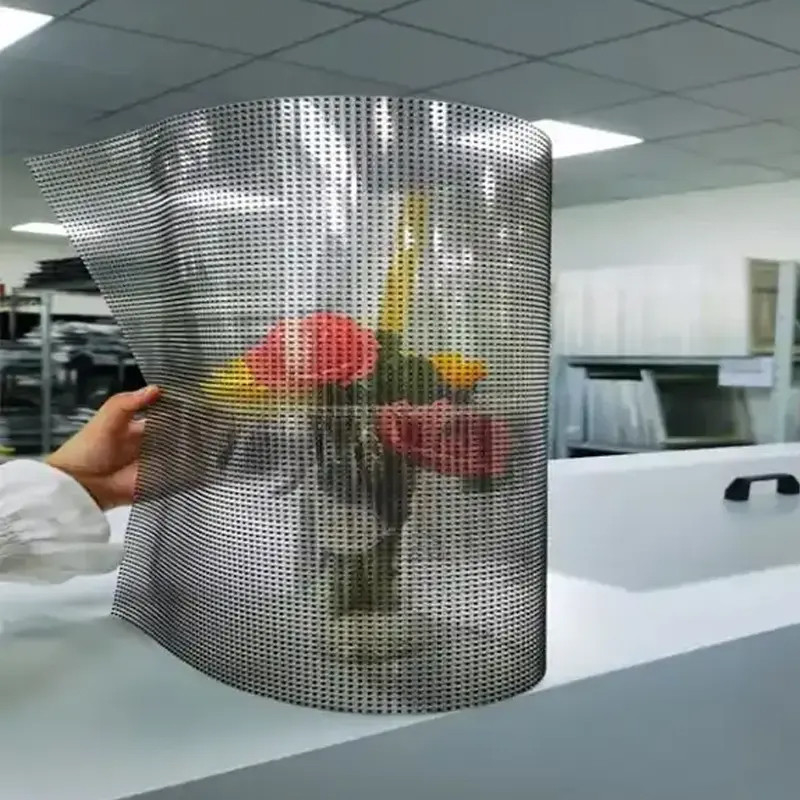

*Ultra high transparency performance
*Can be cut into any shape
*Can be bent freely and installed flexibly
*No need for steel structure installation
*Ultra high transparency performance
*Can be cut into any shape
*Can be bent freely and installed flexibly
*No need for steel structure installation
Low Brightness and High Gray High Refresh Rate
*3840HZ refresh rate,fast corresponding .No screen drag, no flickering situation.The screen display process is clear.
High-quality Lamp Beads
*Three-in-one SMD technology, long service life.Continuous high brightness,high contrast,good light mixing performance safer and more stable.
High Grayscale Display 16bit
RGB path adopts 32 levels of current linear adjustment, and maintains 16bit grayscale display under any current, applicable to indoor, outdoor current requirements consistency.
| Product specification | P4-4 | P4-8 | P6 | P8 | P10 | P16 | P16-32 | P20-60 | P32 |
| Pixel pitch | 4mm*4mm(x*y) | 4mm*8mm(x*y) | 6mm*6mm(x*y) | 8mm*8mm(x*y) | 10mm*10mm(x*y) | 16mm*16mm(x*y) | 16mm*32mm(x*y) | 20mm*60mm(x*y) | 32mm*32mm(x*y) |
| Pixel | 62500p;points/m2 | 31250 points/m2 | 27556 points/m2 | 15625 points/m2 | 10000 points/m2 | 3844points/m2 | 1922points/m2 | 800points/m2 | 961points/m2 |
| LED specification | SMD1010 (light drive in one) | SMD1010 (light drive in one) | SMD2121 (light drive in one) | SMD2121 (light drive in one) | SMD2121 (light drive in one) | SMD2121 (light drive in one) | SMD2121 (light drive in one) | SMD2121 (light drive in one) | SMD2121 (light drive in one) |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 800mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm |
| Module Resolution | 200*60 | 250*30 | 166*40 | 125*30 | 100*24 | 62*15 | 62*7 | 50*4 | 31*7 |
| Pixel resolution | 250*250/㎡ | 250*125/㎡ | 166*166/㎡ | 125*125/㎡ | 100*100/㎡ | 62*62/㎡ | 62*31/㎡ | 50*16/㎡ | 31*31/㎡ |
| Permeability | ≥85% | ≥85% | ≥85% | ≥85% | ≥90% | ≥90% | ≥95% | ≥95% | ≥95% |
| Box wiring mode | Internal wiring (clean back) | Internal wiring (clean back) | Internal wiring (clean back) | Internal wiring (clean back) | Internal wiring (clean back) | Internal wiring (clean back) | Internal wiring (clean back) | Internal wiring (clean back) | Internal wiring (clean back) |
| Weight | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 |
| White balance brightness | ≥3000cd/㎡ | ≥3000cd/㎡ | ≥3000cd/㎡ | ≥3500cd/㎡ | ≥3500cd/㎡ | ≥3500cd/㎡ | ≥2500cd/㎡ | ≥600~800cd/㎡ | ≥1500cd/㎡ |
| Peak power consumption | 400 W/㎡ | 400 W/㎡ | 400 W/㎡ | 400 W/㎡ | 400 W/㎡ | 400 W/㎡ | 400 W/㎡ | 400 W/㎡ | 400 W/㎡ |
