P4 P6 P8 Outdoor Advertising Display Screens Ultra Thin High Brightness
-
Highlight
P6 Outdoor LED Display Ultra Thin
,P8 Outdoor LED Display Screen
,P8 Outdoor Advertising Display Screens
-
Module Size800mm*240mm
-
Pixel Pitch4mm*4mm（x*y）
-
Pixel62500points/m2
-
Pixel Composition1R1G1B
-
LED SpecificationSMD1010 (light Drive In One)
-
NameFlexible LED Film Screen
-
Place of OriginChina
-
Brand NameYUYI
-
CertificationCE ROHS FCC
-
Model NumberP4
-
Minimum Order Quantity1 square meter
-
PriceNegotiable
-
Packaging DetailsCarton/wooden case/flight case/customized
-
Delivery Time15-30 working days
-
Payment Terms,L/C,D/A,D/P,T/T,Western Union,MoneyGram
-
Supply Ability3000 pieces/day
P4 P6 P8 Outdoor Advertising Display Screens Ultra Thin High Brightness
Flexible LED Film Screen for High-Performance P4 P6 P8 Advertising and Display Solutions
1. Ultra-Thin & Transparent Design
- Transparency: 70%-90% light transmittance (depending on pixel pitch), allowing ambient light to pass through while displaying dynamic content.

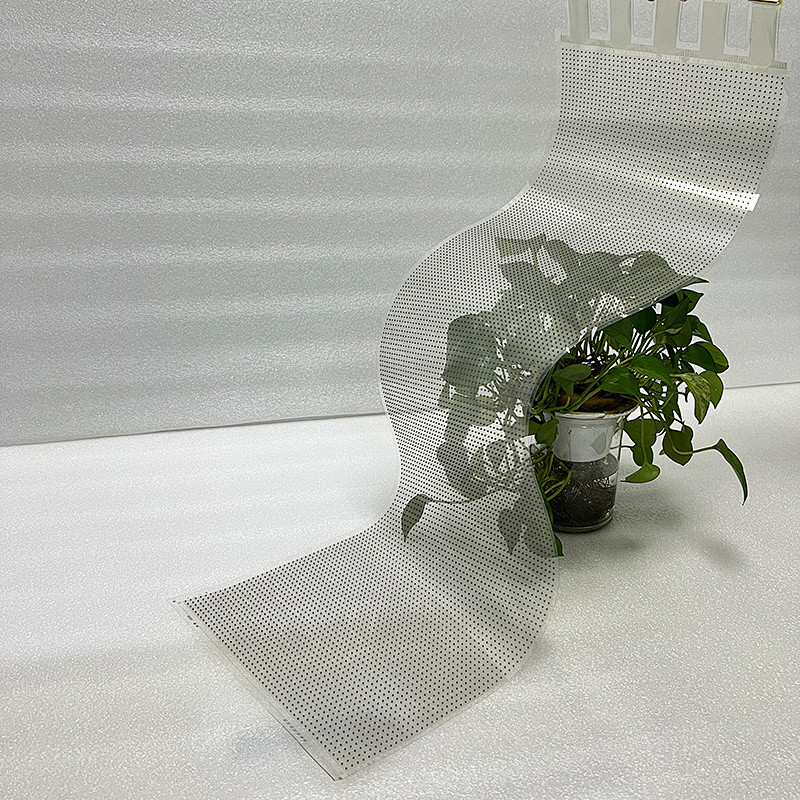

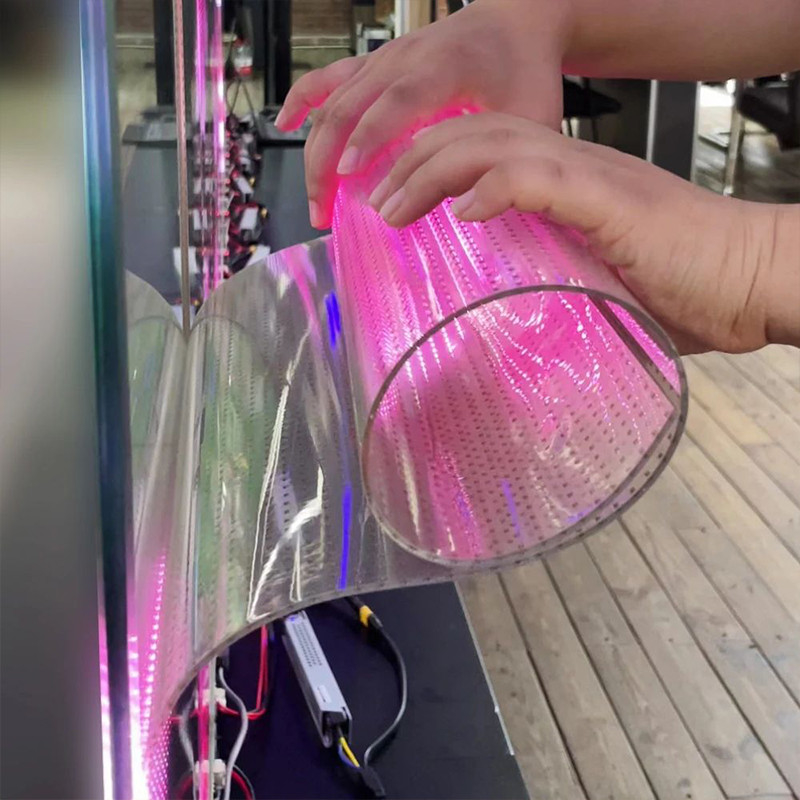

- Flexibility: Bendable and adaptable to curved surfaces, ideal for unconventional architectural designs.
2. High Brightness & Wide Viewing Angle
- Brightness:For clear visibility in direct sunlight.
- Viewing Angle: 160°–170° horizontal/vertical, ensuring consistent image quality from multiple perspectives.
- Contrast Ratio: Enhanced color depth and contrast for vivid visuals.
3. Energy Efficiency & Environmental Adaptability
- Low Power Consumption: Utilizes energy-efficient LED chips and intelligent brightness adjustment .
- Durability: IP30 waterproof and dustproof ratings, suitable for indoor applications.
- Heat Dissipation: Passive cooling design eliminates noisy fans, reducing maintenance needs.
| Product specification | P4-4 | P4-8 | P6 | P8 | P10 | P16 | P16-32 | P20-60 | P32 |
| Pixel pitch | 4mm*4mm(x*y) | 4mm*8mm(x*y) | 6mm*6mm(x*y) | 8mm*8mm(x*y) | 10mm*10mm(x*y) | 16mm*16mm(x*y) | 16mm*32mm(x*y) | 20mm*60mm(x*y) | 32mm*32mm(x*y) |
| Pixel | 62500p;points/m2 | 31250 points/m2 | 27556 points/m2 | 15625 points/m2 | 10000 points/m2 | 3844points/m2 | 1922points/m2 | 800points/m2 | 961points/m2 |
| LED specification | SMD1010 (light drive in one) | SMD1010 (light drive in one) | SMD2121 (light drive in one) | SMD2121 (light drive in one) | SMD2121 (light drive in one) | SMD2121 (light drive in one) | SMD2121 (light drive in one) | SMD2121 (light drive in one) | SMD2121 (light drive in one) |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 800mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm |
| Module Resolution | 200*60 | 250*30 | 166*40 | 125*30 | 100*24 | 62*15 | 62*7 | 50*4 | 31*7 |
| Pixel resolution | 250*250/㎡ | 250*125/㎡ | 166*166/㎡ | 125*125/㎡ | 100*100/㎡ | 62*62/㎡ | 62*31/㎡ | 50*16/㎡ | 31*31/㎡ |
| Permeability | ≥85% | ≥85% | ≥85% | ≥85% | ≥90% | ≥90% | ≥95% | ≥95% | ≥95% |
| Box wiring mode | Internal wiring (clean back) | Internal wiring (clean back) | Internal wiring (clean back) | Internal wiring (clean back) | Internal wiring (clean back) | Internal wiring (clean back) | Internal wiring (clean back) | Internal wiring (clean back) | Internal wiring (clean back) |
| Weight | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 |
| White balance brightness | ≥3000cd/㎡ | ≥3000cd/㎡ | ≥3000cd/㎡ | ≥3500cd/㎡ | ≥3500cd/㎡ | ≥3500cd/㎡ | ≥2500cd/㎡ | ≥600~800cd/㎡ | ≥1500cd/㎡ |
| Peak power consumption | 400 W/㎡ | 400 W/㎡ | 400 W/㎡ | 400 W/㎡ | 400 W/㎡ | 400 W/㎡ | 400 W/㎡ | 400 W/㎡ | 400 W/㎡ |
