P5 P6 P8 P10 LED Video Wall Full Color For Outdoor Advertising
Product Details
| Application: | Outdoor | Color: | Full Color |
|---|---|---|---|
| Supplier Type: | Original Manufacturer, ODM, OEM | Media Available: | Datasheet, Photo, Other |
| Place Of Origin: | Shenzhen China | Model Number: | P5 |
| Brand Name: | Yuyi | Use: | Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment |
| Function: | SDK | Pixels: | 5MM, 5MM |
| Specification: | Video Wall | Screen Type: | Customize |
| Product Name: | Outdoor Led Display Panel P5 | Brightness: | 6500cd/sqm |
| LED Chip: | 2525/2727 | Warranty: | 2 Years |
| Module Size: | 320*160mm | Resolution: | 192*192 |
| Pixel Density: | 40000dots/sqm | Scan Mode: | 1/8scan |
| Life Span: | 100000hours | Display Function: | Video Picture Graphic Text Message |
| Type: | LED | Panel Size: | 320*160mm, 320*160mm |
| Name: | Outdoor Fixed LED Display | ||
| Highlight |
P6 LED Video Wall Outdoor Advertising,P10 LED Video Wall Full Color,Outdoor Advertising Led Video Wall |
||
Product Description
100000hours Life Span P5 P6 P8 P10 Full Color Waterproof Led Video Wall For Outdoor Advertising
|
Product Name
|
p4
|
p5
|
p6
|
p8
|
p10
|
||||
|
Pixel Pitch
|
4mm
|
5mm
|
6mm
|
8mm
|
10mm
|
||||
|
Pixel Density
|
62500dots/m2
|
40000dots/m2
|
27777dot/m2
|
15625dots/m2
|
10000dots/m2
|
||||
|
Module Size
|
256*128mm
|
320*160mm
|
192*192mm
|
320*160mm
|
320*160mm
|
||||
|

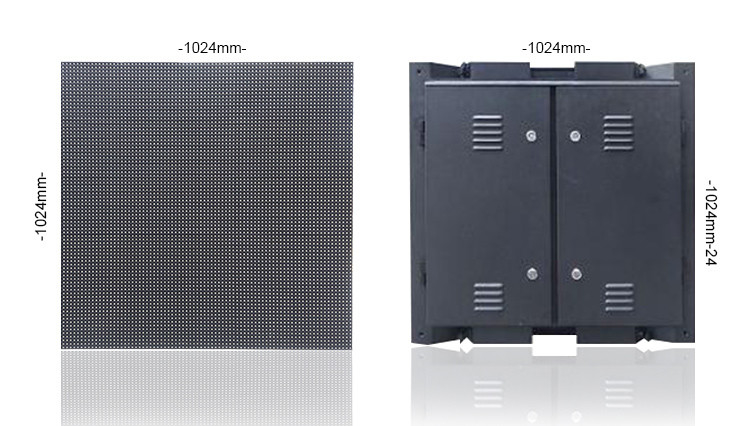

Cabinet Size
|
1024*1024mm
|
960*960mm
|
960*960mm
|
960*960mm
|
960*960mm
|
||||
|
Cabine Weight
(±0.05kg)
|
45kg
|
43kg
|
42kg
|
41kg
|
40kg
|
||||
|
Cabinet Resolution
|
256*256
|
192*192
|
160*160
|
120*120
|
96*96
|
||||
|
Scan mode
|
1/8scan
|
1/8scan
|
1/8scan
|
1/5scan
|
1/4scan
|
||||
|
LED Chip
|
1921/2525
|
2525/2727
|
2525/2727
|
3535
|
3535
|
||||
|
Best Viewing Distance
|
4-45m
|
5-72m
|
6-80m
|
8-90m
|
10-100m
|
||||
|
Bightness
|
7000cd/spm
|
6500cd/spm
|
6500cd/spm
|
6500cd/spm
|
6500cd/spm
|
||||
|
Life Span
|
≥100,000 hours
|
|
|
|
|
||||
|
Power Supply
|
AC 110V/220V +-10%
|
|
|
|
|
||||
|
Waterproof Grade
|
Front: IP65 Rear: IP54
|
|
|
|
|
||||
|
Control System
|
LINSN or Novastar or as you required
|
|
|
|
|
||||
We mainly provide a full range of indoor and outdoor full-color LED modules, full-color LED display, full-color LED display series products.Our products are widely used in airports, banks, stadiums, concerts, shopping malls, surveillance centers and advertising and entertainment fields.Our products are exported to Europe, North America, Asia, and even exported to the Middle East and Africa, and are well received by consumers.
A;YUYI optoelectronic co.,ltd is an OEM/ODM factory,It is also a company integrating industry and trade.
Q2.what can you buy from us?
A:LED Display Series product,LED display Module,LED Display Screen
Q3: Where is your nearst port?
A : Our nearst port is shenzhen Shekou.
Q4: Are all of your products of good quality?
A: Yes, our products are of good quality, you don't have to worry about that. And we provide 2 years' warranty.
Q5: Can I visit your factory ?
A: We do have our factory, and you're welcomed to visit it at any time. The sales and the manager will accompany you to introduce our production line at that time.
Q6: What kind of packaging do you provide?
A: We provide flight case, wooden case and carton.
Q7: How can I select your product?
A: Firstly you need to tell us your requirement such as the viewing distance, size, installation height, and some other details for the LED screen that you want. And then we will give you a recommendation.
Q8: How long will it take me to get the product?
A: We will send the goods as quick as possible, but oftenly it will take 1-2 weeks to get the goods according to the distance ,and some other necessary processes.
