Self Adhesive LED Crystal Film Screen High Transmittance P10 Outdoor LED Display
-
Highlight
Self Adhesive LED Crystal Film Screen
,LED Crystal Film Screen High Transmittance
,P10 Outdoor LED Display Screen
-
NameLED Crystal Film Screen
-
ApplicationIndoor
-
Media AvailableDatasheet, Photo, EDA/CAD Models, Other
-
Model NumberP6.25/P8/P10/P15/P20
-
UseAdvertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall
-
Product NameTransparent Led Film Screen
-
Warranty2-5 Years
-
Module Composition Size1000*400mm
-
Pixel CompositionR1B1G1
-
Viewing Angle160
-
Weight1.3KG
-
Place of OriginChina
-
Brand NameYUYI
-
Model NumberP6.25/P8/P10/P15/P20
-
Minimum Order Quantity1 piece
-
PriceNegotiable
-
Packaging DetailsCarton/wooden box/flight case/customized
-
Delivery Time7-30 days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union,MoneyGram
-
Supply Ability3000 pieces / day
Self Adhesive LED Crystal Film Screen High Transmittance P10 Outdoor LED Display
Self-Adhesive LED Crystal Film Screen For Window Glass R1B1G1 Pixel Composition 2000/4000 Brightness High Transmittance
As a technological product, YUYI LED film screen has irreplaceable advantages:

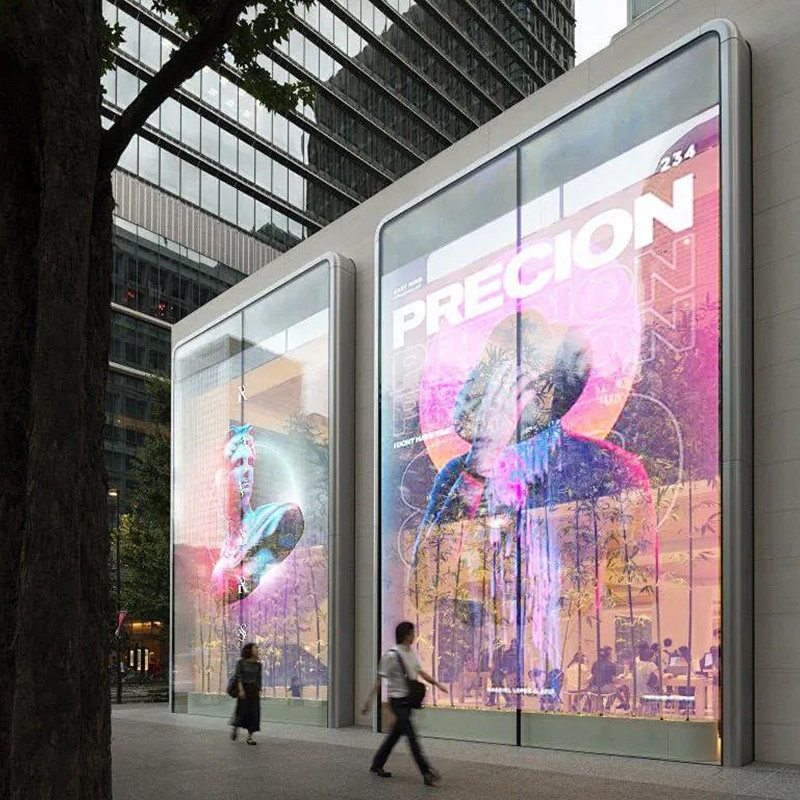

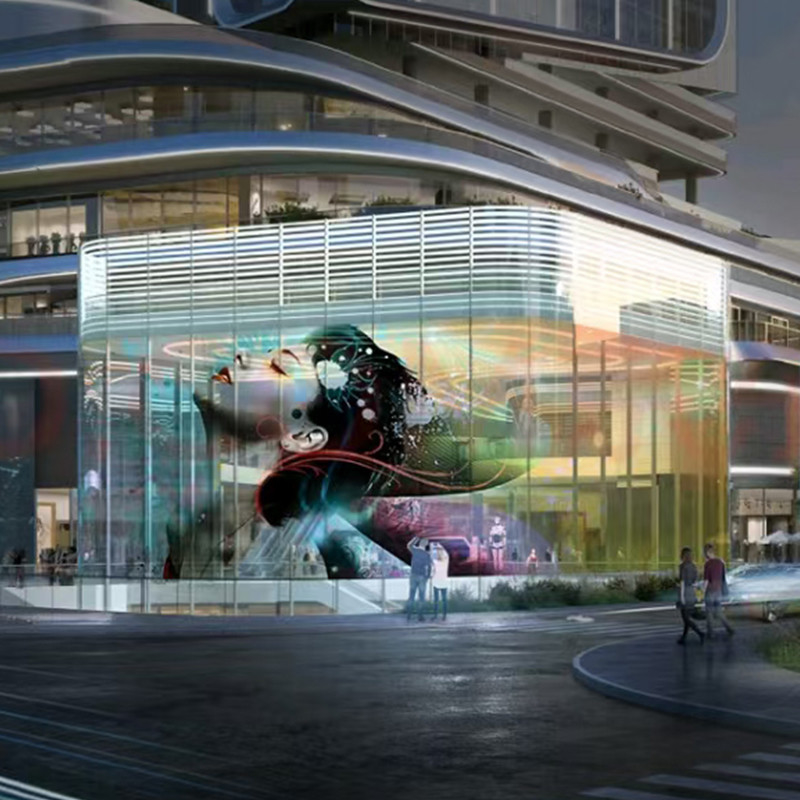

1. High-Transmittance Display: This indoor high transmittance self-adhesive advertising film
screen provides a clear and transparent display for your window glass, ensuring that your
advertisements are visible from both indoors and outdoors, perfect for a user looking for a
product that can be used in a shopping mall.
2. Durable and Water-Resistant: With an IP33 rating, this LED display screen is waterproof
and designed for outdoor use, with a lifespan of 100,000 hours, making it a reliable choice for
users in various environments.
3. Flexible Installation Options: This self-adhesive display can be installed in various ways,
including fixed installation, making it easy to integrate into your existing infrastructure, perfect
for a user who wants to use the product in a retail store.
4. Certified and Reliable: With certifications from CE, ROHS, FCC, CCC, and ISO9001, this
product ensures that users can trust its quality and safety, providing a worry-free experience
for a user who values reliability and safety.
Product Description
Unique Visual Experience
Different from the traditional LED transparent screen on the market, YUYI LED film screen has more advantages.

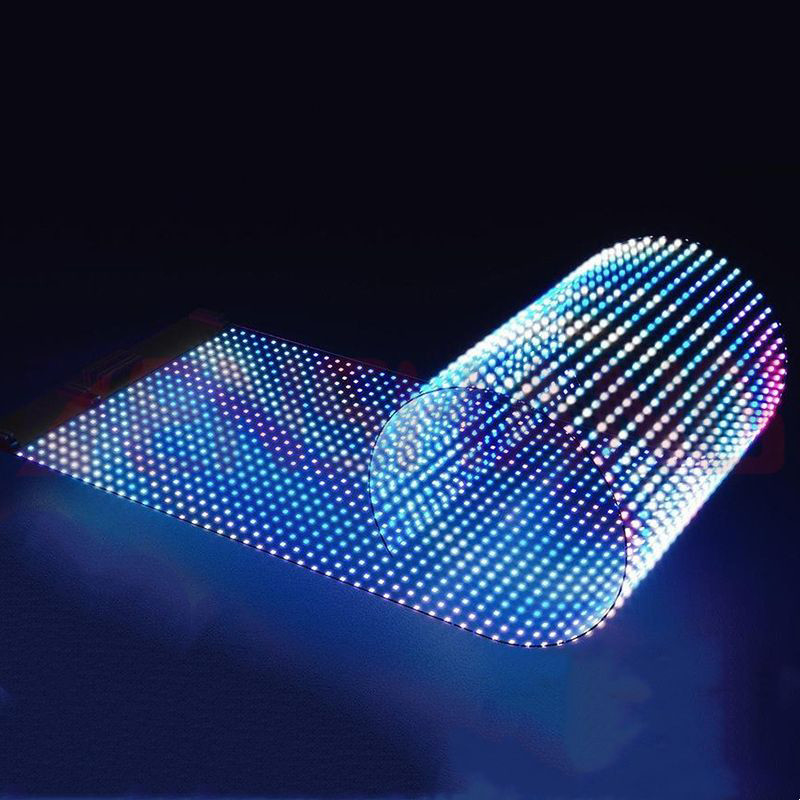

*Ultra high transparency performance
*Can be cut into any shape
*Can be bent freely and installed flexibly
*No need for steel structure installation
Low Brightness and High Gray High Refresh Rate
3840HZ refresh rate,fast corresponding .No screen drag, no flickering situation.The screen display process is clear.
Breakpoint Transmission
Even if a few lamp beads are broken in the middle, it will not affect the image display.
Ultra-light Weight and Ultra-thin
Ultra-light weight and ultra-thin thickness make YUY LED film screen save more cost in transportation and save a lot of labor in installation,while the effect after installation is also better!
Wide Viewing Angle
160° for each angle, no dead Angle and no color bias.Making the visual experience even better.
Stable Operation
Using a specific bare chip, components are solidly mounted on a highly transparent flexible film, and through a unique capping process,the display module is integrated into a high-transparencyoptical lens-type substrate that can emit light fordisplay.
The transparent fllm ensures that thedirected light passes though the windows,and viewers feel like time travel to thefuture with high see-through experience.
Installation Methods

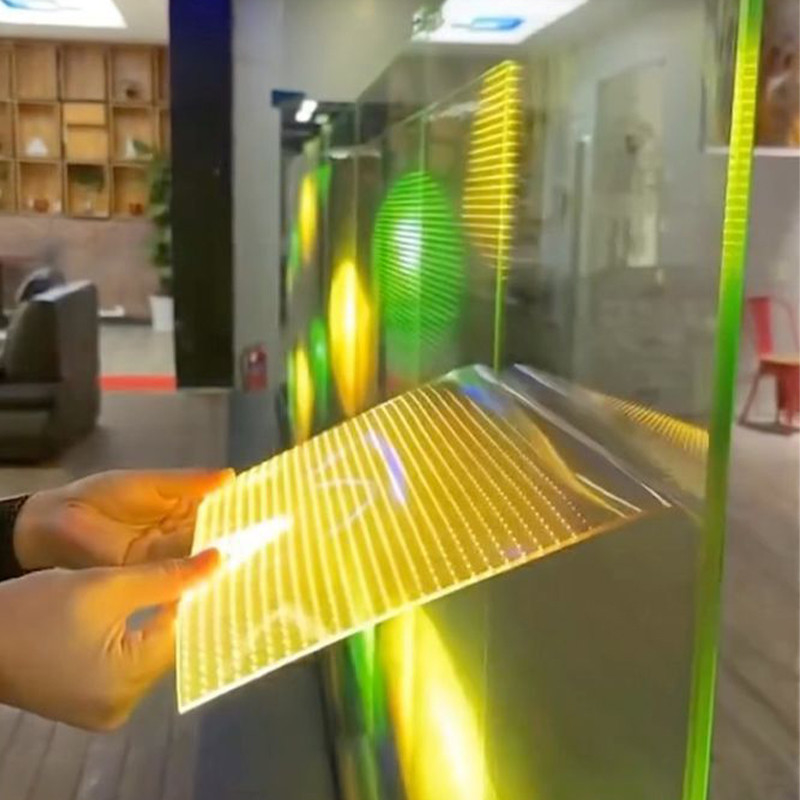

No need for steel frame structure, just gently stick on the glass, and then the power signal can be accessed.Self-adhesive can be adhered to the glass, because of the properties of the gel itself, the adhesion will be strengthened with time.
Product details
|
Model Number
|
P6.25
|
P8
|
P10
|
P15
|
P20
|
||||
|
Module Composition Size
|
1000*400MM
|
1000*400MM
|
1000*400MM
|
990*390MM
|
1000*400MM
|
||||
|
LED Lights
|
REE1515
|
REE1515
|
REE1515
|
REE2121
|
REE2121
|
||||
|
Pixel Composition
|
R1B1G1
|
R1B1G1
|
R1B1G1
|
R1B1G1
|
R1B1G1
|
||||
|
Pixel Pitch
|
6.25*6.25MM
|
8*8MM
|
10*10MM
|
15*15MM
|
20*20MM
|
||||
|
Module Pixel
|
160*64=10240
|
125*50=6250
|
100*40=4000
|
66*26=1716
|
50*20=1000
|
||||
|
Pixel/㎡
|
25600
|
15625
|
10000
|
4356
|
2500
|
||||
|
Brightness
|
2000/4000
|
2000/4000
|
2000/4000
|
2000/4000
|
2000/4000
|
||||
|
Transmittance
|
90%
|
92%
|
94%
|
94%
|
95%
|
||||
|
Viewing Angle
|
160
|
160
|
160
|
160
|
160
|
||||
|
Input Voltage
|
AC110v-240v 50-60Hz
|
|
|
|
|
||||
|
Peak Power
|
600w/㎡
|
600w/㎡
|
600w/㎡
|
600w/㎡
|
600w/㎡
|
||||
|
Average Power
|
200w/㎡
|
200w/㎡
|
200w/㎡
|
200w/㎡
|
200w/㎡
|
||||
|
Working Environment
|
-20-55℃ 10-90%
|
|
|
|
|
||||
|
Weight
|
1.3KG
|
1.3KG
|
1.3KG
|
1.3KG
|
1.3KG
|
||||
|
Thickness
|
2.5MM
|
2.5MM
|
2.5MM
|
2.5MM
|
2.5MM
|
||||
|
Driving method
|
Static
|
Static
|
Static
|
Static
|
Static
|
||||
|
Control system
|
Nova/Carlette
|
|
|
|
|
||||
|
Lifespan
|
100000H
|
100000H
|
100000H
|
100000H
|
100000H
|
||||
|
Gray level
|
16bit
|
16bit
|
16bit
|
16bit
|
16bit
|
||||
|
Refresh rate
|
3840HZ
|
3840HZ
|
3840HZ
|
3840HZ
|
3840HZ
|
||||
FAQ
Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/0DM manufacturer which has specialized in led display industry for 10 years. All customers are welcome to visit our factory, please contact us in advance if necessary! (Add: 602,
Building C, Factory Building, Hongrongfa Industrial Park, No.460 Xiangshan Avenue, Luotian Community, Yanluo Street,ShenZhen GuangDong China )
Building C, Factory Building, Hongrongfa Industrial Park, No.460 Xiangshan Avenue, Luotian Community, Yanluo Street,ShenZhen GuangDong China )
Q2: What can you get from us?
A2:We can provide you with all kinds of LED screens, LED modules, all kinds of stage lighting and other necessary accessories.
Q3:What if I don't know how to choose and match LED screens?
A3:Before purchasing the LED display, you can rest assured that you can contact our salesman, tell us the location you need to install (indoor/outdoor), the size of the LED screen and the main purpose of the information, we have professional staff to customise the scheme and quote for you. And we can provide you with a one-stop customised solution, no need to worry about other configuration issues!
Q4:What is your MOQ?
A4:We support to take samples and any quantity order, at present the wholesale order is more, if you have any need, contact our salesman, the quantity order will provide you the most favourable price!
Q5:How about your warranty term?
A5:2-5 years waranty quality service shall be provided for the defective products that under normal working condition within 2-5 years from the purchase date.Specific warranty period depends on different products.Do not need to worry, we have a professional after-sales team bound to solve a series of LED screen use problems!
Q7:Do you provlde any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal
cable,LED lamp,lC,mask, power supply, receiving card, etc.
cable,LED lamp,lC,mask, power supply, receiving card, etc.
